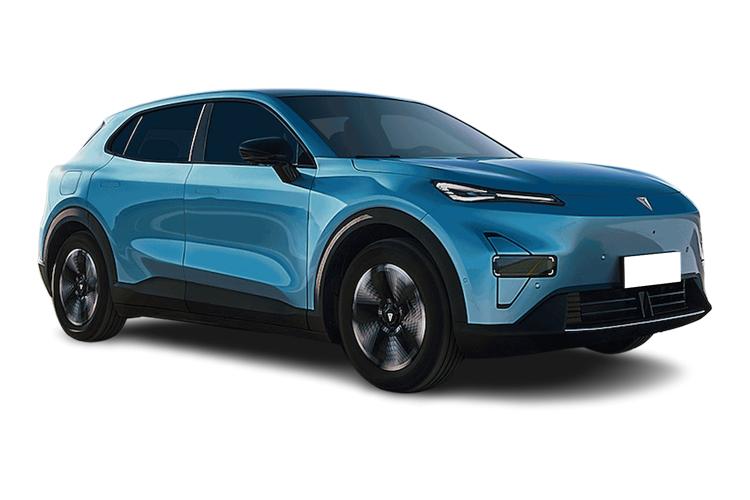

CHANGAN DEEPAL S05 ELECTRIC ESTATE

Electric Vehicle Data

• Battery Capacity in kWh
  69
• Battery Charging Scenario 1 - Charge Time (Mins)
  432
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  11
• Battery Charging Scenario 2 - Charge Time (Mins)
  23
• Battery Charging Scenario 2 - Percentage Change
  10-80
• Battery Charging Scenario 2 - Power Supply - kW
  200
• Battery Charging Scenario 3 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 3 - Percentage Change
  Not Available
• Battery Charging Scenario 3 - Power Supply - kW
  Not Available
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Left Side Rear
• Coupler/Connector Type
  CCS Type 2
• Maximum Charging Rate - kW
  200
• Standard manufacturers Battery warranty - Mileage
  120000
• Standard manufacturers Battery warranty - Years
  8
• WLTP - EC (kWh/100km) - Comb
  17.5
• WLTP - EC (miles/kWh) - Comb
  3.6
• WLTP - Pure Electric Range (km) - City
  550
• WLTP - Pure Electric Range (km) - Comb
  445
• WLTP - Pure Electric Range (miles) - City
  342
• WLTP - Pure Electric Range (miles) - Comb
  276

Emissions - ICE

• CO
  Not Available
• CO2 (g/km)
  0
• HC
  Not Available
• HC+NOx
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  Not Available

Engine and Drive Train

• Camshaft
  Not Available
• Catalytic Convertor
  Not Available
• CC
  1
• Compression Ratio
  Not Available
• Cylinder Layout
  Not Available
• Cylinders
  Not Available
• Cylinders - Bore (mm)
  Not Available
• Cylinders - Stroke (mm)
  Not Available
• Engine Code
  Not Available
• Engine Layout
  Not Available
• Fuel Delivery
  Not Available
• Gears
  1 SPEED
• Number of Valves
  Not Available
• Transmission
  AUTO

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  0.0
• Badge Power
  435
• Based On ID
  Not Available
• Coin Description
  320kW 69kWh
• Coin Series
  Max
• Generation Mark
  1
• Insurance Group 1 - 50 Effective January 07
  41D
• NCAP Adult Occupant Protection %
  94
• NCAP Child Occupant Protection %
  87
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  78
• NCAP Safety Assist %
  76
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  24000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  100000
• Standard manufacturers warranty - Years
  7
• Timing Belt Interval Frequency - Months
  Not Available
• Timing Belt Interval Mileage
  Not Available
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  5.5
• Engine Power - BHP
  435
• Engine Power - KW
  320
• Engine Torque - LBS.FT
  370
• Engine Torque - MKG
  51.2
• Engine Torque - NM
  502
• Top Speed
  112

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  N/A

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  245/45 R20
• Tyre Size Rear
  245/45 R20
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  20" ALLOY

Vehicle Dimensions

• Height
  1600
• Length
  4598
• Wheelbase
  2880
• Width
  1900
• Width (including mirrors)
  2125

Weight and Capacities

• Fuel Tank Capacity (Litres)
  Not Available
• Gross Vehicle Weight
  2470
• Luggage Capacity (Seats Down)
  1385
• Luggage Capacity (Seats Up)
  492
• Max. Loading Weight
  430
• Max. Towing Weight - Braked
  1600
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  2040
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11.6
