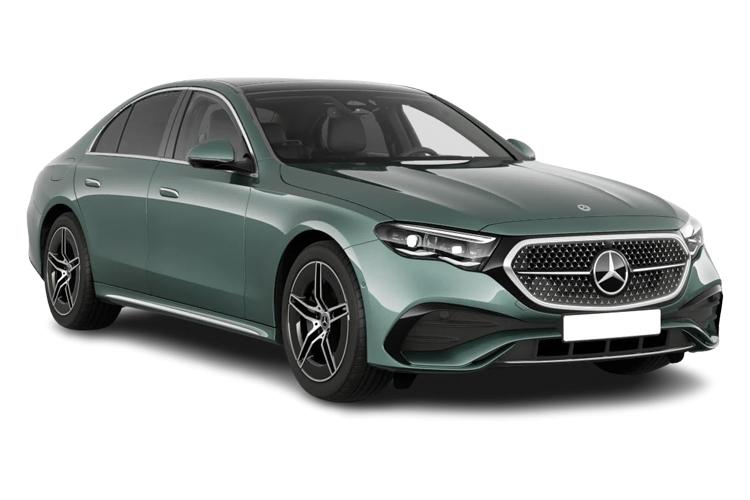

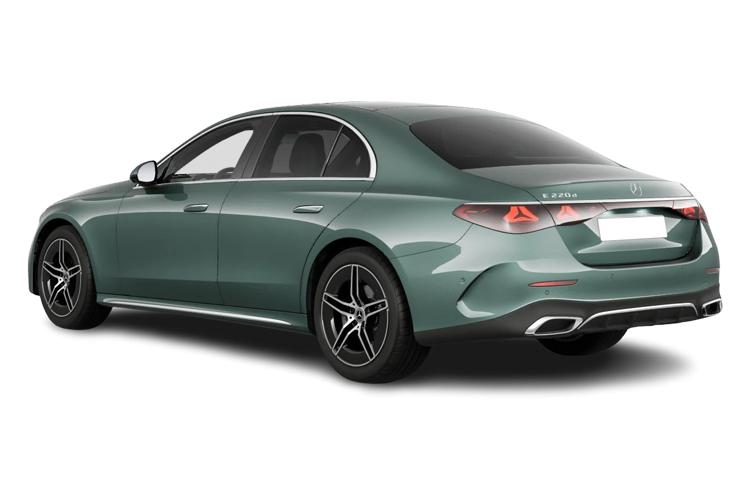

MERCEDES-BENZ E CLASS AMG SALOON

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  21.2
• Battery Charging Scenario 1 - Charge Time (Mins)
  210
• Battery Charging Scenario 1 - Percentage Change
  10-100
• Battery Charging Scenario 1 - Power Supply - kW
  7.4
• Battery Charging Scenario 2 - Charge Time (Mins)
  135
• Battery Charging Scenario 2 - Percentage Change
  10-100
• Battery Charging Scenario 2 - Power Supply - kW
  11
• Battery Charging Scenario 3 - Charge Time (Mins)
  20
• Battery Charging Scenario 3 - Percentage Change
  10-80
• Battery Charging Scenario 3 - Power Supply - kW
  55
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Left Side Rear
• Coupler/Connector Type
  CCS Type 2
• Maximum Charging Rate - kW
  55
• Standard manufacturers Battery warranty - Mileage
  62000
• Standard manufacturers Battery warranty - Years
  6
• Usable Battery Capacity
  25.4
• WLTP - EC AC Weighted (kWh/100km) - Comb
  24.9
• WLTP - EC AC Weighted (kWh/100km) - Comb - TEH
  25
• WLTP - EC AC Weighted (kWh/100km) - Comb - TEL
  24.9
• WLTP - EC AC Weighted (miles/kWh) - Comb
  2.5
• WLTP - EC AC Weighted (miles/kWh) - Comb - TEH
  2.5
• WLTP - EC AC Weighted (miles/kWh) - Comb - TEL
  2.5
• WLTP - Equivalent AER (km) - City
  97
• WLTP - Equivalent AER (km) - City - TEH
  97
• WLTP - Equivalent AER (km) - City - TEL
  97
• WLTP - Equivalent AER (km) - Comb
  96
• WLTP - Equivalent AER (km) - Comb - TEH
  96
• WLTP - Equivalent AER (km) - Comb - TEL
  96
• WLTP - Equivalent AER (miles) - City
  60
• WLTP - Equivalent AER (miles) - City - TEH
  60
• WLTP - Equivalent AER (miles) - City - TEL
  60
• WLTP - Equivalent AER (miles) - Comb
  60
• WLTP - Equivalent AER (miles) - Comb - TEH
  60
• WLTP - Equivalent AER (miles) - Comb - TEL
  60

Emissions - ICE

• CO
  0.15
• HC
  0.007
• HC+NOx
  Not Available
• NOx
  0.003
• Particles
  0
• Standard Emissions
  EURO 6e-bis

Emissions - PHEV

• WLTP - CO2 Weighted (g/km) - Comb
  71
• WLTP - CO2 Weighted (g/km) - Comb - TEH
  71
• WLTP - CO2 Weighted (g/km) - Comb - TEL
  71

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  2999
• Compression Ratio
  10.5:1
• Cylinder Layout
  IN-LINE
• Cylinders
  6
• Cylinders - Bore (mm)
  83
• Cylinders - Stroke (mm)
  92.4
• Engine Layout
  NORTH SOUTH
• Fuel Delivery
  TURBO DIRECT INJECTION
• Gears
  9 SPEED
• Number of Valves
  24
• Transmission
  SEMI-AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No

Fuel Consumption - PHEV

• WLTP - FC Ch Sus (l/100km) - Comb
  8.9
• WLTP - FC Ch Sus (l/100km) - Comb - TEH
  9
• WLTP - FC Ch Sus (l/100km) - Comb - TEL
  8.9
• WLTP - FC Ch Sus (l/100km) - Extra High
  8.4
• WLTP - FC Ch Sus (l/100km) - Extra High - TEH
  8.5
• WLTP - FC Ch Sus (l/100km) - Extra High - TEL
  8.4
• WLTP - FC Ch Sus (l/100km) - High
  7.7
• WLTP - FC Ch Sus (l/100km) - High - TEH
  7.8
• WLTP - FC Ch Sus (l/100km) - High - TEL
  7.7
• WLTP - FC Ch Sus (l/100km) - Low
  13.2
• WLTP - FC Ch Sus (l/100km) - Low - TEH
  13.3
• WLTP - FC Ch Sus (l/100km) - Low - TEL
  13.2
• WLTP - FC Ch Sus (l/100km) - Medium
  8.8
• WLTP - FC Ch Sus (l/100km) - Medium - TEH
  8.9
• WLTP - FC Ch Sus (l/100km) - Medium - TEL
  8.8
• WLTP - FC Ch Sus (mpg) - Comb
  31.7
• WLTP - FC Ch Sus (mpg) - Comb - TEH
  31.4
• WLTP - FC Ch Sus (mpg) - Comb - TEL
  31.7
• WLTP - FC Ch Sus (mpg) - Extra High
  33.6
• WLTP - FC Ch Sus (mpg) - Extra High - TEH
  33.2
• WLTP - FC Ch Sus (mpg) - Extra High - TEL
  33.6
• WLTP - FC Ch Sus (mpg) - High
  36.7
• WLTP - FC Ch Sus (mpg) - High - TEH
  36.2
• WLTP - FC Ch Sus (mpg) - High - TEL
  36.7
• WLTP - FC Ch Sus (mpg) - Low
  21.4
• WLTP - FC Ch Sus (mpg) - Low - TEH
  21.2
• WLTP - FC Ch Sus (mpg) - Low - TEL
  21.4
• WLTP - FC Ch Sus (mpg) - Medium
  32.1
• WLTP - FC Ch Sus (mpg) - Medium - TEH
  31.7
• WLTP - FC Ch Sus (mpg) - Medium - TEL
  32.1
• WLTP - FC Weighted (l/100km) - Comb
  3.1
• WLTP - FC Weighted (l/100km) - Comb - TEH
  3.1
• WLTP - FC Weighted (l/100km) - Comb - TEL
  3.1
• WLTP - FC Weighted (mpg) - Comb
  91.1
• WLTP - FC Weighted (mpg) - Comb - TEH
  91.1
• WLTP - FC Weighted (mpg) - Comb - TEL
  91.1

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  3.0
• Badge Power
  585
• Based On ID
  Not Available
• Coin Description
  4Matic+
• Coin Series
  AMG Night Ed Prem+
• Generation Mark
  6
• Insurance Group 1 - 50 Effective January 07
  50E
• Manufacturers Corrosion Perforation Guarantee - Years
  30
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  92
• NCAP Child Occupant Protection %
  90
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  84
• NCAP Safety Assist %
  87
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Mileage
  12500
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  Unlimited
• Standard manufacturers warranty - Years
  3
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  3.8
• Engine Power - BHP
  585
• Engine Power - KW
  430
• Engine Power - RPM
  6100
• Engine Torque - LBS.FT
  553
• Engine Torque - MKG
  76.5
• Engine Torque - NM
  750
• Engine Torque - RPM
  2200
• Top Speed
  155

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  265/40 R20
• Tyre Size Rear
  295/35 R20
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  AMG 5 TWIN SPOKE
• Wheel Type
  20" ALLOY

Vehicle Dimensions

• Height
  1472
• Height (including roof rails)
  Not Available
• Length
  4965
• Wheelbase
  2971
• Width
  1902
• Width (including mirrors)
  2065

Weight and Capacities

• Fuel Tank Capacity (Litres)
  60
• Gross Vehicle Weight
  2920
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  370
• Max. Loading Weight
  374
• Max. Roof Load
  100
• Max. Towing Weight - Braked
  2100
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  2546
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  12.5
