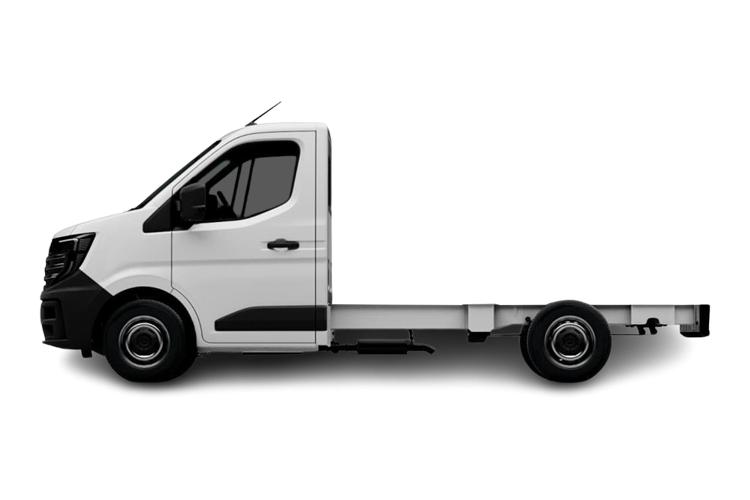

NISSAN INTERSTAR F40 L3 DIESEL

Emissions - ICE

• CO
  Not Available
• HC
  Not Available
• HC+NOx
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  238
• WLTP - CO2 (g/km) - Extra High
  230
• WLTP - CO2 (g/km) - High
  227
• WLTP - CO2 (g/km) - Low
  276
• WLTP - CO2 (g/km) - Medium
  236

Engine and Drive Train

• Automatic Transmission
  Yes
• Bore
  85
• Catalytic Convertor
  Yes
• CC
  1997
• Cooling System
  WATER
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Engine Codes
  M920DDCg5
• Engine Layout
  FRONT TRANSVERSE
• Engine Make
  Not Available
• Fuel Delivery
  COMMON RAIL
• Fuel Type
  DIESEL
• Gears
  9 SPEED
• Manual Transmission
  No
• Number of Valves
  16
• Stroke
  88
• Valve gear
  DOHC

Fuel Consumption - ICE

• EC
  No
• WLTP - FC (l/100km) - Comb
  9.0
• WLTP - FC (l/100km) - Extra High
  8.8
• WLTP - FC (l/100km) - High
  8.7
• WLTP - FC (l/100km) - Low
  10.5
• WLTP - FC (l/100km) - Medium
  9.0
• WLTP - MPG - Comb
  31.4
• WLTP - MPG - Extra High
  32.1
• WLTP - MPG - High
  32.5
• WLTP - MPG - Low
  26.9
• WLTP - MPG - Medium
  31.4

General

• Alternative Fuel Qualifying
  No
• Did at least one aspect of this vehicles safety give cause for concern?
  No
• Badge Engine CC
  2.0
• Badge Power
  170
• Based On ID
  Not Available
• Chassis Engine Number
  Not Available
• Clutch
  SINGLE DRY PLATE
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Generation Mark
  4
• Ghost model for valuation purposes
  No
• Insurance Group 1
  Not Available
• Insurance Group 2
  Not Available
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• Manufacturers Paintwork Guarantee - Years
  5
• NCAP Adult Occupant Protection %
  Not Available
• NCAP Child Occupant Protection %
  Not Available
• NCAP Front/Side Impact - Discontinued February 09
  Not Available
• NCAP Overall Rating - Effective February 09
  Not Available
• NCAP Overall Rating - LCV
  5 Star
• NCAP Pedestrian - Discontinued February 09
  Not Available
• NCAP Pedestrian Protection %
  Not Available
• NCAP Safety Assist %
  Not Available
• Relative Height
  H1
• Relative Length
  L3
• Running Cost League Headings
  LARGE
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  25000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  100000
• Standard manufacturers warranty - Years
  5
• Steering
  PAS
• This vehicle is classed as a car for VED purposes
  No
• Vehicle Homologation Class
  N2
• Vin/Frame No.
  Not Available

Performance

• 0 to 62 mph (secs)
  12
• BHP
  170
• Engine Power KW
  125
• Engine Power RPM
  3500
• Engine Torque LBS.FT
  280
• Engine Torque MKG
  38.7
• Engine Torque NM
  380
• Engine Torque RPM
  1500
• Top Speed
  110

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  No
• Automatic Clutch
  Yes
• Plated 3rd Axle
  Not Available
• Plated 4th Axle
  Not Available
• Space Saver?
  No
• Tyre Make
  Not Available
• Tyre Size Front
  215/75 R16
• Tyre Size Rear
  215/75 R16
• Tyre Size Spare
  FULL SIZE
• Wheel Style
  Not Available
• Wheel Type
  16" STEEL

Vehicle Dimensions

• Front Overhang
  970
• Height
  2257
• Length
  6195
• Load Space Width Between Wheel Arches
  1380
• Lower Rear Door Width
  Not Available
• Rear Door Height
  Not Available
• Rear Overhang
  1010
• Side Load Door Height
  Not Available
• Side Load Door Width
  Not Available
• Turning Circle - Kerb to Kerb
  14.6
• Wheelbase
  4215
• Width (excluding mirrors)
  2080
• Width (including mirrors)
  2350

Weight and Capacities

• Boot Capacity Saloons
  Not Available
• Fuel Tank Capacity (Litres)
  80
• Gross Train Weight
  6000
• Gross Vehicle Weight
  4000
• Load Space Volume
  Not Available
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Roof Load
  Not Available
• Max. Towing Weight - Braked
  2000
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1759
• No. of Seats
  3
• Payload
  2241
• Plated 2nd Axle
  2370
• Plated Front Axle
  2070
